CONFIDENTIAL U.S.S. SOUTH DAKOTA (BB57) Gunfire Damage Battle of Guadalcanal 14-15 November 1942
CONTENTS
|
CONFIDENTIAL LIST OF PHOTOGRAPHS Photo No.
|
CONFIDENTIAL Photo No.
|
CONFIDENTIAL Photo

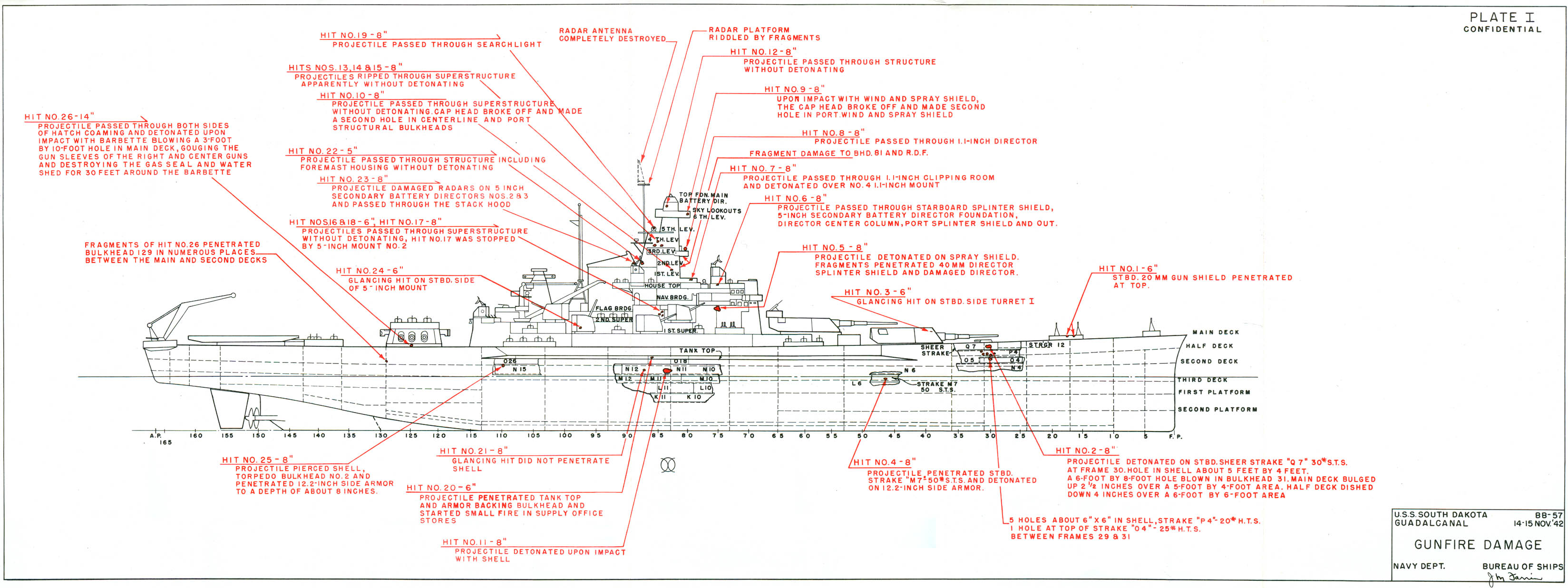

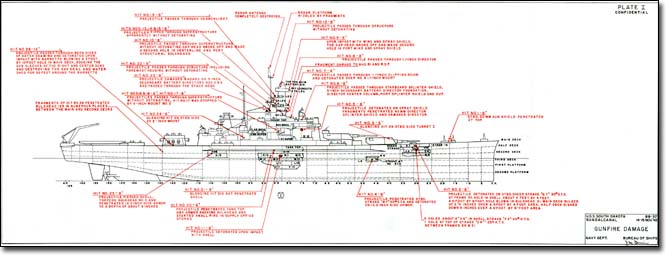

LIST OF PLATES
|

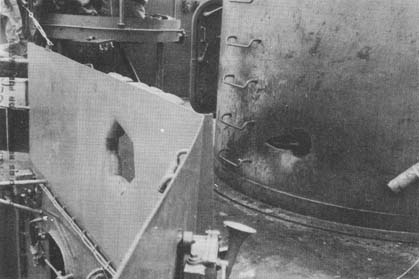

CONFIDENTIAL the waterline, these parts would break off and make fragment holes in the vicinity of the hole made by the body of the projectile. This is believed to be the reason that, even when there was no detonation, fragment holes were frequently found near the projectile hole. Also the hole made by the hardened cap head would be expected to be round and slightly smaller than the hole made by the body of the projectile as noted in hits Nos. 9 and 10.

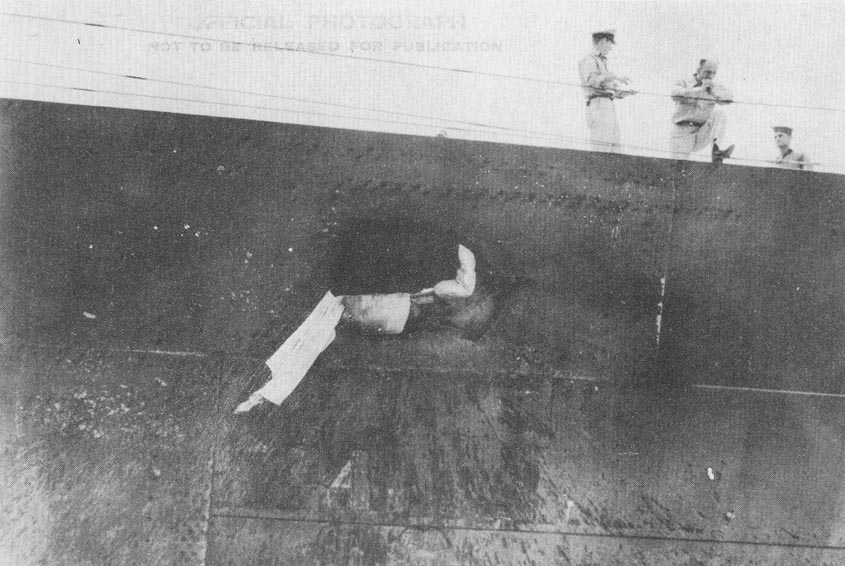

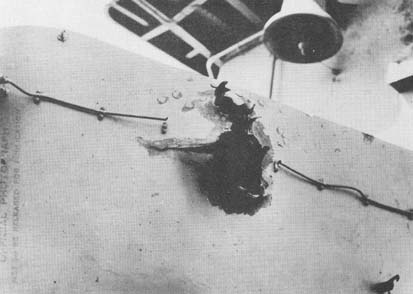

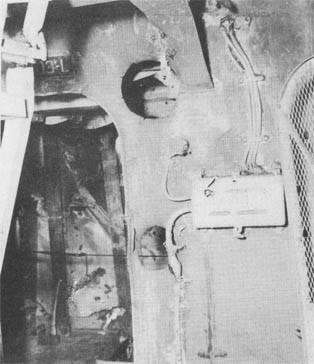

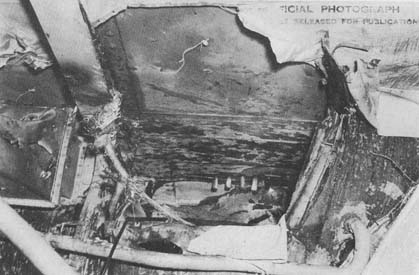

13. This hit, estimated to have been a 6-inch projectile, nicked the top of the starboard 20mm gun shield at about frame 17 without detonating. 14. This projectile detonated upon impact at frame 30 starboard blowing a 5 by 4-foot hole in the sheer strake about four feet below the main deck. The force of the detonation passed inboard and aft and blew an 8 by 6-foot hole in bulkhead 31 just below the main decK and 2 feet 6 inches inboard of the starboard side. The main deck was bulged up about 2-1/2 inches over a 5 by 4-foot area just inboard of the starboard shell and forward of bulkhead 31. The half deck was dished down about 4 inches over a 6 by 6-foot area adjacent to the starboard shell and forward side of bulkhead 31. The 42-inch ventilation duct on exhaust system H2-33-1 was blown out. Expanded metal partitions, doors, shelves and bins in AH-219-L were demolished. It is estimated that this was an 8-inch AP projectile. 15. Six holes occurred in the starboard shell plating between frames 29 and 32 just below hit No. 2 (Photo 1). A seam in the shell about 1 foot above the second deck was opened between frames 30-1/2 and 32; lockers, ventilation ducts, insulation and sheathing were damaged in A-207-L; and fragments ignited a bedding bag in A-206-L and clothes in two lockers in A-207-L. Although there was no area within the ship where the reported extent of damage would indicate a point of detonation and there were no exit holes, SOUTH DAKOTA reported that the holes in the shell had been made by six 6-inch hits. However, from their location, the extent and nature of the damage and knowledge of the characteristics of Japanese projectiles, it is believed that these holes were made by the cap head and fragments of the windshield of the projectile of hit No. 2.
|

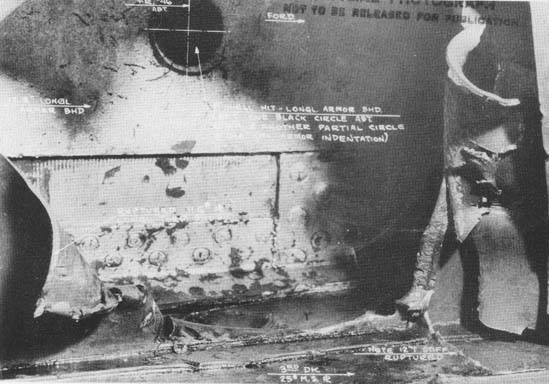

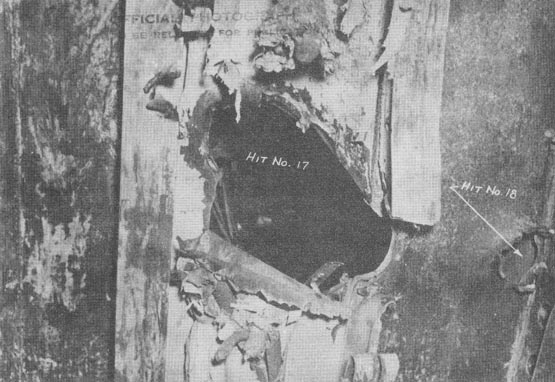

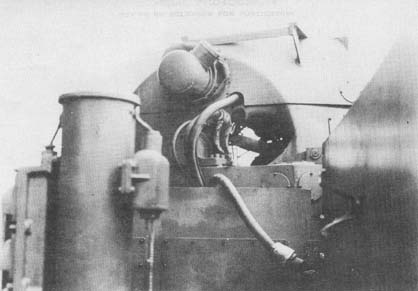

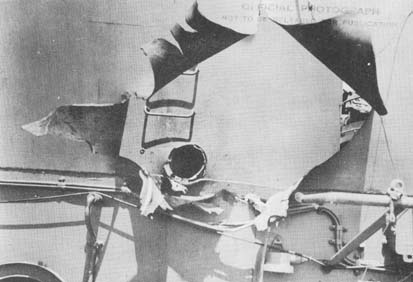

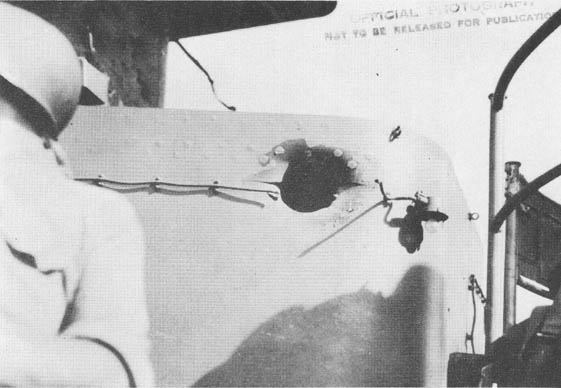

CONFIDENTIAL 16. The starboard side of Turret I was struck a glancing blow by a projectile, probably 6-inch, which exploded on the starboard sight port. The hinge on the sight port was bent and the closing device on the port was rendered inoperative. Seven strakes of wood deck planking between frames 44 and 48 were badly splintered by fragments. 17. This hit struck between frames 46 and 47 about a foot above the third deck. It penetrated longitudinal torpedo bulkhead No. 2 and detonated on the 12.2-inch longitudinal armor bulkhead about 2 feet 2 inches above the third deck. The armor was not indented, but the projectile left a black circle about 6 inches in diameter within a partial black ring about 8 inches in diameter on the face of the armor. The force of the explosion blew the third deck down about 3-1/2 inches over a 15 by 30-inch area and fragments penetrated the third deck between torpedo bulkhead No. 2 and the longitudinal armor bulkhead in two places. Torpedo bulkhead No. 2 above the third deck was blown outboard between frames 46 and 47 by the force of the explosion. The following tanks were reported to have been flooded as a result of the hit: A-ll-F, A-21-F, A-23-F, A-33-F and A-39-F. Although it was not mentioned in the report, A-27-V probably flooded also. 18. This projectile probably landed short of SOUTH DAKOTA and was about to ricochet as the hit was below the waterline and the projectile was rising. From the black circles which the projectile left on the armor, it is estimated that this was an 8-inch AP projectile. Photo 5 19. The wind and spray shield at frame 74 starboard on the flag bridge level was hit by an estimated 8-inch projectile that detonated on contact. The 10-pound STS splinter shield around the starboard 40mm director was badly buckled and holed and the 40mm director was extensively damaged. Fragments from this projectile penetrated the deck of the flag bridge in the vicinity of frame 74 and the watertight door between the signal bridge and signal shelter. One fragment gouged a hole 3 inches in diameter to a depth of 3/4 inch in the 1-1/2-inch STS bulkhead of the signal shelter. Other fragments blew downward and sprayed the first superstructure deck between frames 66 and 72 starboard and penetrated hatch 01-70-1 in eleven places. On the navigation bridge fragments from this projectile penetrated the spray shield and the starboard longitudinal structural bulkhead in two places and the deck in three places near frame 75. Extensive blast damage was sustained by metal joiner doors, ventilation ducts, aluminum bulkheads, and metal furniture in the vicinity of the hit. Three glass panels on the flag bridge were broken by blast or fragments and the operating mechanisms rendered unserviceable. |

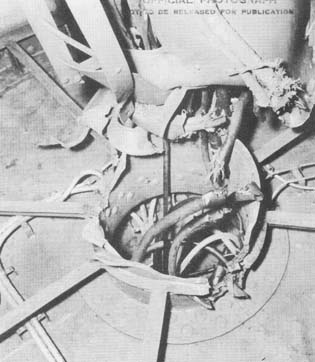

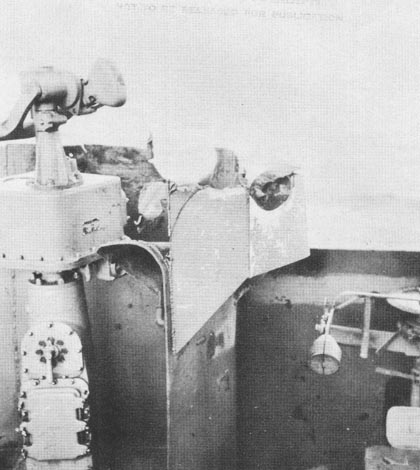

CONFIDENTIAL 20. The 10-pound STS splinter shield was hit at frame 74 about two feet above the housetop deck. The projectile penetrated the 60-pound STS foundation of No.l 5-inch secondary battery director, severed the center column, and passed out through the port side of the director foundation and the port splinter shield at about frame 75 without detonating. A small electrical fire started and ignited some life jackets. It is estimated that this was an 8-inch AP projectile. 21. The 30-pound STS bulkhead of the 1.1-inch clipping room was pierced by a projectile that passed through and out about 6 feet above the housetop at frame 78-1/2 and detonated over No. 4 1.1-inch quadruple mount. Three fragments penetrated the 15-pound STS splinter shield around the mount exploding the ready service ammunition on the shield and six fragments pierced the deck within the working circle of the mount. The mount itself was badly damaged by the fragments. Within the 1.1-inch clipping room the centerline beam was severed, the overhead blown open, ventilation ducts crushed and insulation badly damaged. Several 1.1-inch clips exploded and ignited life jackets of dead and wounded men. The sprinkling system was cut in three places and 75 1.1-inch clips were destroyed. From the size of the hole it is estimated that this hit was an 8-inch AP projectile. Photo 11 22. This projectile, probably 8-inch, hit the Mk. 45 1.1-inch director on the third level above the housetop at about frame 79. It ripped through the director apparently without exploding. Photo 12 23. The wind and spray shield around air defense forward at frame 79 had one hole on the starboard side and two holes on the port side. It is possible that the two holes on the port side were caused by different projectiles. However, it appears more likely that the cap head of an 8-inch AP projectile broke off upon hitting the starboard side of the windshield and made the second hole in the port side of the windshield. Apparently the projectile or projectiles did not detonate. |
CONFIDENTIAL 24. A 10-inch hole was pierced in the starboard longitudinal structural bulkhead at frame 82 about 7 feet above the first level above the housetop. The centerline bulkhead had a 10-inch hole about 30 inches above an 8-inch hole at frame 83. The port longitudinal structural bulkhead had a 10-inch hole about 6 feet above the first level above the housetop at frame 84 and a 10-inch by 3-inch hole at the deck level. These holes were reported to have been caused by an 8-inch and a 5-inch projectile. It appears more probable that an 8-inch AP projectile cap head broke off the projectile upon penetrating the starboard structural bulkhead and made the second hole in the centerline and port bulkheads, while the intact projectile made only one entry hole in the starboard bulkhead. Two exit holes associated with only one entry hole from Japanese projectiles have been noted in other war experience. Hit No. 21 on SAN FRANCISCO, 13 November 1942* is an example. The access ladders to the second level above the housetop were damaged, and ventilation ducts demolished, but there is little evidence of a detonation associated with this hit. 25. An estimated 6 or 8-inch projectile detonated upon contact with "N" strake of the shell just aft of frame 83 between the second and third deck levels. A hole about 3 by 2 feet was blown in the shell and torpedo bulkhead No. 2 was holed in numerous places by fragments. A tear in the shell plating extended forward to about frame 81-1/2. The rivets in "N" strake were loose or missing between frames 82-1/2 and 84-1/2. Transverse bulkhead 83 was ruptured and distorted between the shell and torpedo bulkhead No. 2 from the second to the third deck. As a result of this hit, B-23-F, B-31-F and B-39-F flooded. 26. Another projectile, probably 8-inch AP, hit at frame 83-1/2 about 8 feet above the deck of air defense forward. The projectile passed through two 60-pound STS bulkheads and shattered the top of the port spray shield at about frame 84 without detonating. Two 3-inch fragment holes were blown in the director tube. 27. Three hits, estimated to have been 8-inch AP, were made in the starboard bulkhead between frames 83 and 85 from 5 to 8 feet above the third level above the housetop. These projectiles ripped through the - - - - - - - - - - - - - - - - - - - - - - - - - - - - - * BuShips War Damage Report No. 26 |

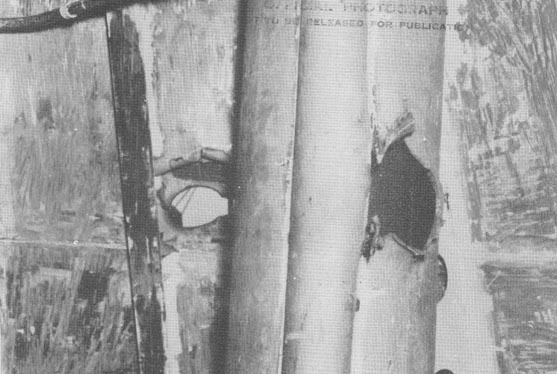

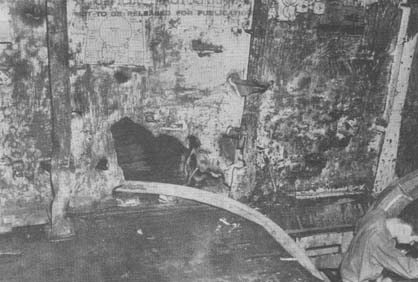

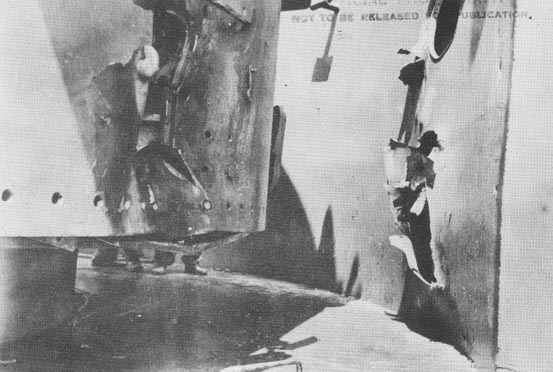

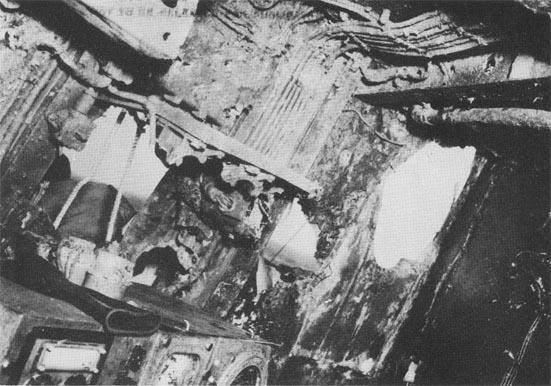

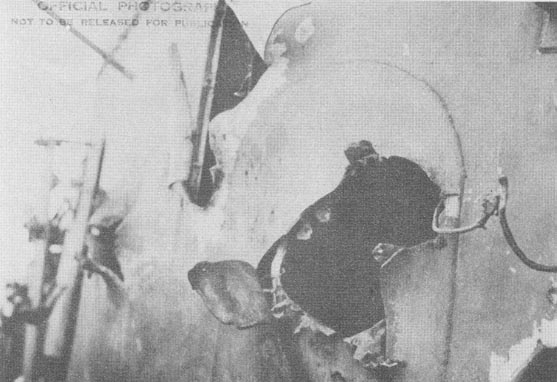

CONFIDENTIAL transverse passage and the radar plot and out the port side, demolishing the top of the port spray shield between frames 83 and 86. Bulkhead 84 had a 30 by 60-inch hole torn in it and the fourth level above the housetop had a 12 by 18-inch and an 18 by 36-inch hole. The port longitudinal structural bulkhead was perforated by at least five holes about two feet in diameter. All equipment and instruments in radar plot were demolished and a fire was started. In spite of the extensive damage, there is little evidence that these projectiles detonated. 28. Three hits were made on the starboard bulkhead between frames 83 and 85 about three feet above the second superstructure deck. From the size of the entry holes it is estimated that these were one 8-inch AP and two 6-inch AP projectiles. The 8-inch projectile ripped through five structural bulkheads and was stopped by the shield of 5-inch mount No. 2 knocking off the rear door without detonating. When discovered later, it was thrown overboard. In staterooms 0202; 0203, 0205, unassigned space under starboard signal flag locker, and B-103-L, through which the projectiles passed, furniture, ventilation ducts, metal joiner doors and aluminum divisional bulkheads were demolished. Less extensive shock and fragment damage was sustained in staterooms 0204, 0206, 0207 and passage B-0201-L. One fragment pierced the starboard signal flag locker and started a minor fire. Photo 28 29. No. 3 36-inch searchlight received a direct hit estimated to have been an 8-inch projectile that passed through without detonating. 30. An estimated 6-inch projectile hit the tank top at frame 85-1/2, penetrated the armor backing bulkhead between the main and second decks and detonated. Transverse bulkhead 85 was ruptured and distorted over an area 15 by 24 inches. Fragments sprayed lockers in supply office stores and started a small, smoldering fire in stationery and clothing lockers. 31. An area of the 50-pound STS shell 24 inches in diameter at frame 87 starboard between the second and third decks was indented to a depth of six inches. It was reported that this was the result of an 8-inch glancing hit. If so, the performance of this 50-pound STS plate was most unusual. Another possibility is that this indentation was made by the windshield or cap head of hit No. 11 or hit No. 20. |

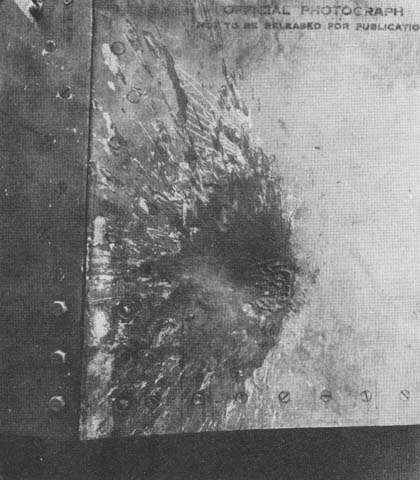

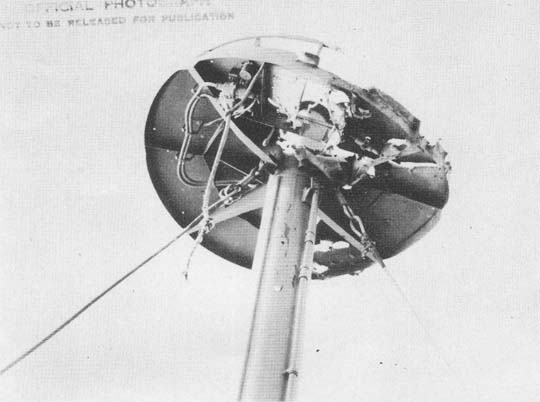

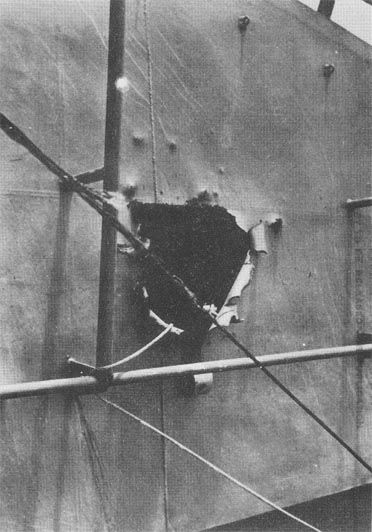

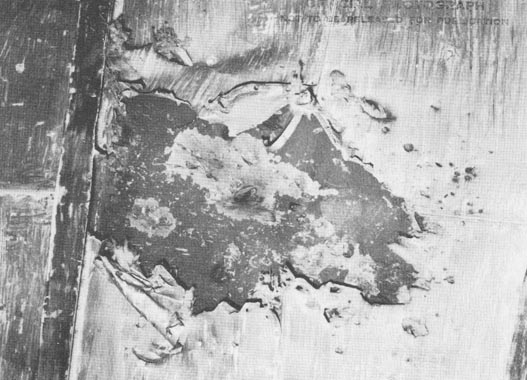

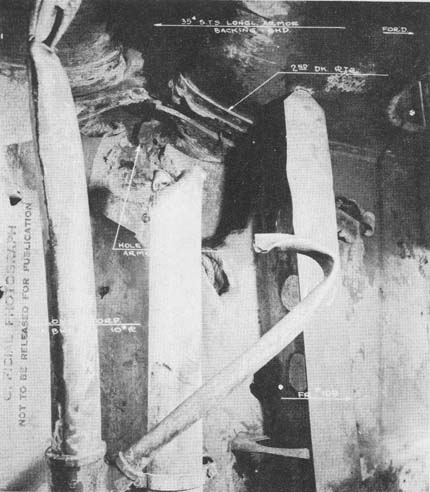

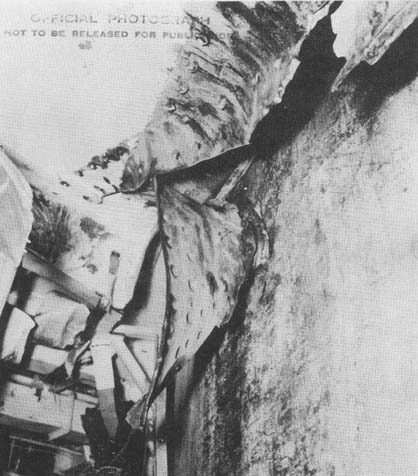

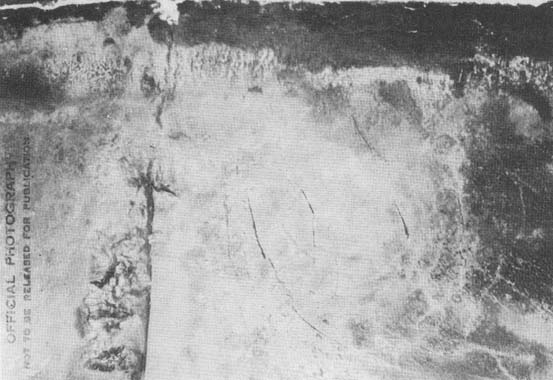

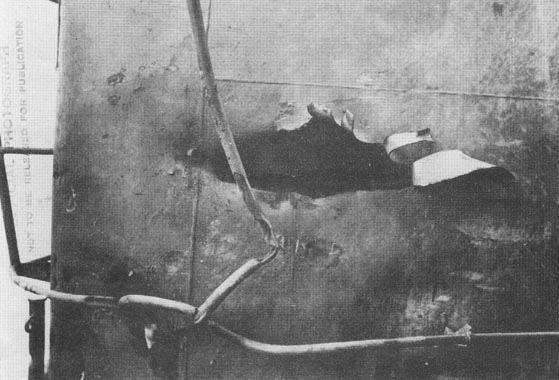

CONFIDENTIAL 32. Just above the second level above the housetop at frame 87 the starboard side of the structural longitudinal bulkhead was hit by an estimated 5-inch projectile. The projectile pierced the foremast housing tube and passed out through the port longitudinal structural bulkhead near frame 86. The port bulkhead stiffener at frame 86 was distorted and the first aid locker penetrated by three fragments. Five panels of sheathing and insulation in the first aid station were damaged. 33. An estimated 8-inch AP projectile hit the radar antenna of 5-inch director No. 3. Fragments of the windshield and cap head broke off and sprayed the starboard side of the stack hood in the vicinity of frame 89. The projectile pierced the stack hood and continued on through the radar antenna of 5-inch director No. 2. Photo 33 34. Five-inch mount No. 5 was hit a glancing blow by an estimated 6-inch projectile. The 2-inch STS was sprung but not penetrated and minor structural damage was sustained inside the mount. Apparently the projectile detonated upon impact. Fragments gouged both guns of 5-inch mount No. 7 and sprayed the starboard side of the deckhouses on the first and second superstructure decks between frames 93 and 100. Photo 34 35. An estimated 8-inch AP projectile hit the shell at the second deck, frame 109-1/2. The projectile pierced the shell at a seam between a 25-pound and a 50-pound STS strake, furrowed through the 20-pound STS, second deck, pierced 10-pound longitudinal torpedo bulkhead No. 2 and penetrated the 12.2-inch longitudinal armor bulkhead to a depth of 7 to 8 inches at the top edge of the armor. Fragments went aft and pierced and distorted frames 109, 110, 111 and 112 and penetrated the third deck between torpedo bulkhead No. 2 and the longitudinal armor bulkhead. Although the hole in the shell was above the waterline, compartments B-71-F, B-75-V, B-77-F and B-79-F flooded as a result of this hit. This was reported by SOUTH DAKOTA to have been a 6-inch projectile, but it is not believed that a 6-inch projectile would have penetrated so much armor. 36. An estimated 14-inch projectile passed through both sides of the coaming of hatch 1-128 and detonated upon hitting the barbette of Turret III at frame 123-1/2 about 17 inches from the top. The 17.3-inch armor was gouged to a depth of about 1-1/2 inches over an area 15 inches in diameter. Surface cracks covered this area and vertical cracks developed in the armor to a distance of 8 feet aft of the point of impact. The blast blew a hole in the main deck 3 feet wide extending around the barbette for a distance of 10 feet. Around this hole the main deck was dished down out to 8 feet from the barbette between frames 121 and 130. Some fragments were deflected down and aft riddling the starboard side of bulkhead 129 in numerous places between the main and second decks including one hole 26 inches by 35 inches. Some of the fragments continued on through C-204-L piercing the equipment in the crew's messing space and penetrating watertight door 2-136-1 in two places and bulkhead 136 in one place. In C-201-L on the starboard side of the barbette considerable damage was done to equipment, mess tables, and ventilation ducts. The armored second deck defeated all fragments. Fragments and blast deflected upward from the point of impact demolished the gas seal and water shed for 30 feet around the circumference of the barbette, gouged the gun sleeves of the right and center guns of Turret III and ignited the gun bloomers. Some difficulty was experienced in training the turret after the hit but it was believed that the turret was still able to fire. Fragments ranging aft on the main deck damaged 20mm guns, ready service boxes, gun shields, starboard catapult, and fire plug 1-133-2. Other fragments spreading forward pierced the superstructure on the main and first superstructure deck levels. Miscellaneous Hits 37. The port side of transverse structural bulkhead 81 on the second level above the housetop was riddled with fragment holes ranging in size from 3 to 7 inches in diameter. The foundation of radio direction finder No. 2 was demolished by blast and fragment attack. The source of these fragments is not clear. It is possible that they came from the detonation of hit No. 7 over 1.1-inch mount No. 4. 38. The SC-1 radar antenna and mount were shot away and the radar platform was riddled with holes. From the appearance of Photo 39 it is probable that the radar was hit by a projectile that detonated on contact. Turret Blast Damage 39. The blast from Turrets I and II while trained as far aft as possible on the starboard side did considerable damage on the first superstructure and main decks. The 3/8-inch STS shield around the 40mm mount at frame 73 starboard on the first superstructure deck was tilted inboard and the |

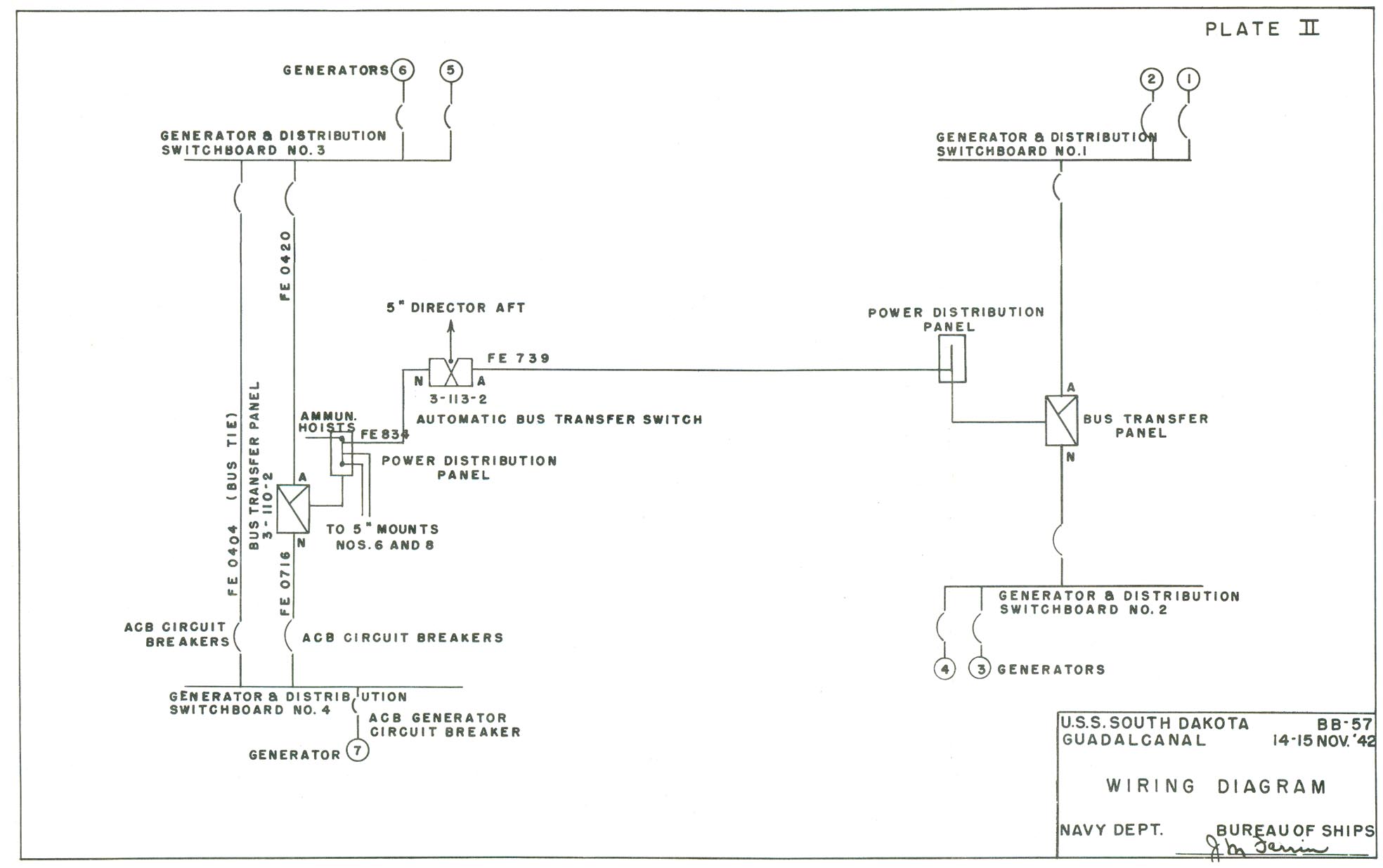

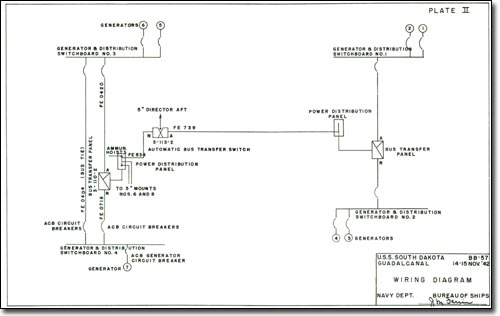

CONFIDENTIAL equipment on I.C. and F.C. circuits in the superstructure. The short-circuits produced an overload such that the circuit breaker on the normal feeder to the I.C. switchboard tripped on main generator and distribution switchboard No. 1. The I.C. switchboard was equipped with automatic bus transfer to shift the power supply to the emergency Diesel genorator switchboard No. 1 in case of interruption of normal power from the main board. As the capacity of the Diesel generator was considerably smaller than the connected load on the I.C. switchboard, the F.C. and I.C. bus was energized through a 1000 ampere circuit breaker which was designed to automatically open before the automatic bus transfer operated. Thus, only the load on the I.C. restricted bus, which was well within the capacity of the emergency generator, would remain on the board. The circuit breaker opened properly. But after the automatic bus transfer operated, the fuzes protecting the emergency supply "blew." Apparently several of the circuits connected to the I.C. restricted bus were still short-circuited. Defective circuits were isolated and power restored on all serviceable I.C. and F.C. circuits in approximately three minutes. 44. Ordinarily, matters which are not the result of damage by enemy action are not included in damage reports. In this case, however, the fact that electrical failure initiated by the shock of gunfire was a handicap to SOUTH DAKOTA while in action warrants some comment. As a result of this failure, numerous control shifts had to be made and it was reported that all power on the after part of the ship was lost for about a minute. This occurred before receiving the first hit. 45. At the time of the failure, normal power was being supplied to the after 5-inch director from generator and distribution switchboard No. 4 through a bus transfer panel, power distribution panel, and an automatic bus transfer switch (PLATE II). The automatic bus transfer switch received its alternate supply from generator and distribution switchboard No. 2 through a bus transfer panel and a power distribution panel. The AQB circuit breakers in the distrioution panels, which were in unattended locations, were "locked in" in accordance with outstanding instructions. 46. The shock produced by Turret III firing astern caused the contactor for the alternate power supply in the automatic bus transfer switch to close, thereby paralleling generator and distribution switchboards No. 4 and No. 2. As the two power sources were not in phase the resulting synchronizing current surge welded the contacts on the automatic bus transfer switch closed and the normal feeder cable to the after 5-inch director (FE834) ruptured and short-circuited between phases on the No. 4 generator and distribution switchboard side of the rupture. Because no mention was made of trouble on the alternate power supply to the director, it is inferred that the rupture of the normal feeder cleared the short-circuit on the alternate supply which then continued to supply the director. As the AQB circuit breaker in the power distribution panel was "locked in" the fault on generator and distribution switchboard No. 4 was cleared by the tripping of generator No. 7 ACB circuit breaker. It was not reported whether the feeder ACB circuit breaker tripped also but it was implied that it did. |
|
|
|
|
|
|
|
